CP-206 Fully Isolated pedalboard power supply

 Tip: Click the picture to enlarge it

Unlike the large transformer fully isolated power supplies, this unique lightweight IC design  is smaller, easy to mount and requires less space on your pedal board. Fully isolated power outlets ensure stable power and ultra-low noise.


The Circuit has anti-ground noise and anti-interference treatment which delivers a 100% clear sound.

The power supply has 12 outputs for powering a variety of different effects including Drum effect, multi effect and digital delay pedals.

The Circuit has anti-ground noise and anti-interference treatmentto give you a 100% clear sound.

Each output is independent and with short circuit protection which is indicated by the LED lights.

When it is giving power the light is on, If a circuit failure occurs the light will go out.

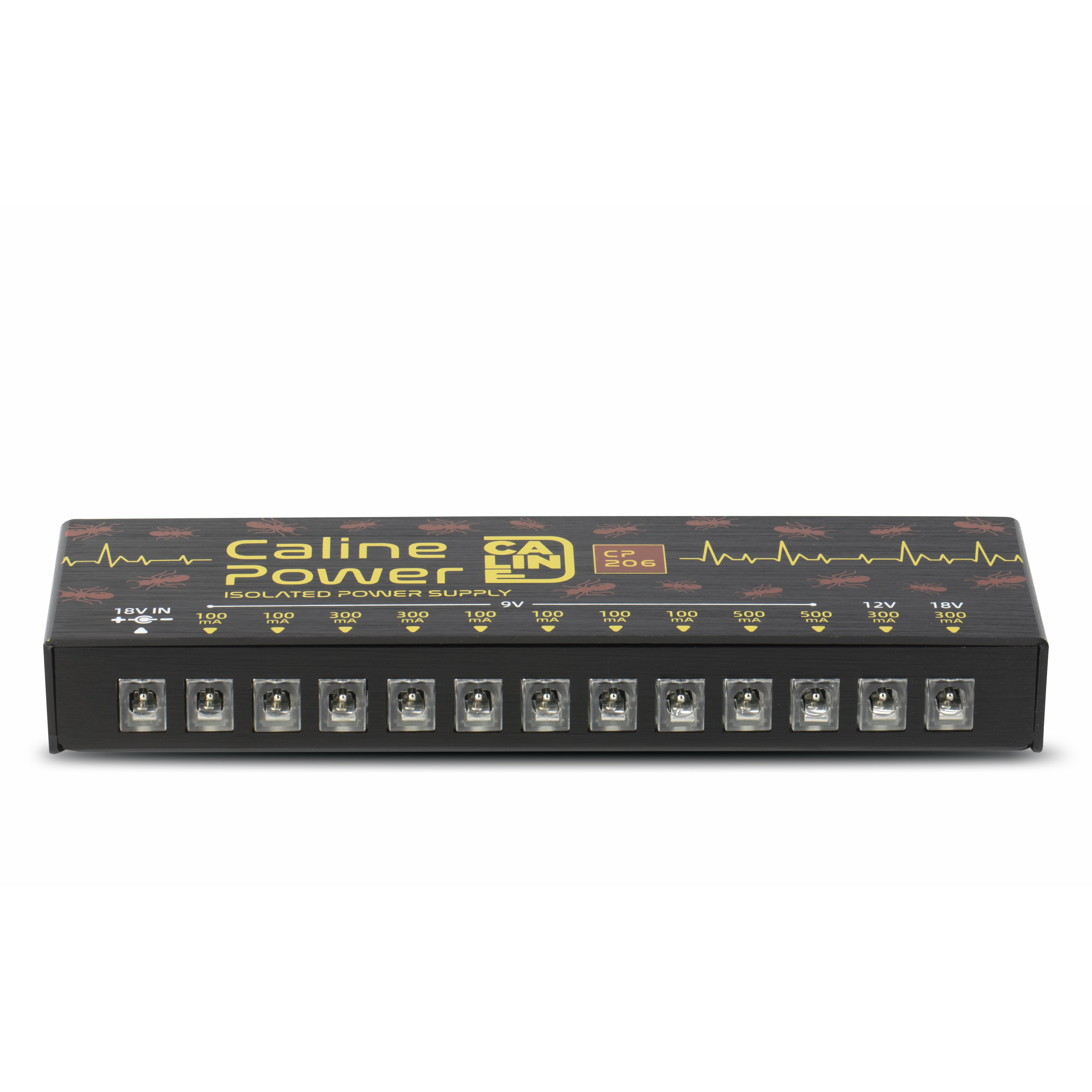

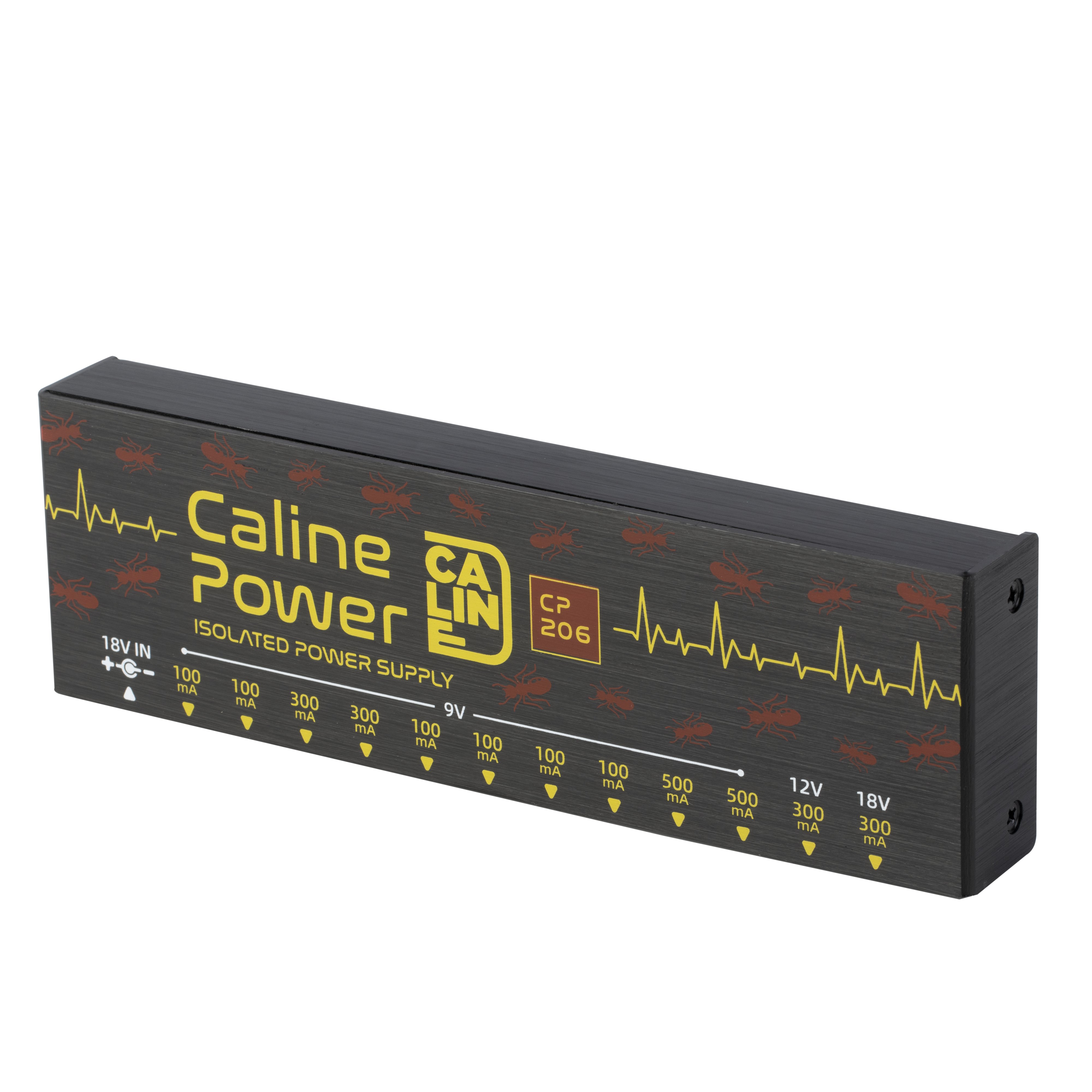

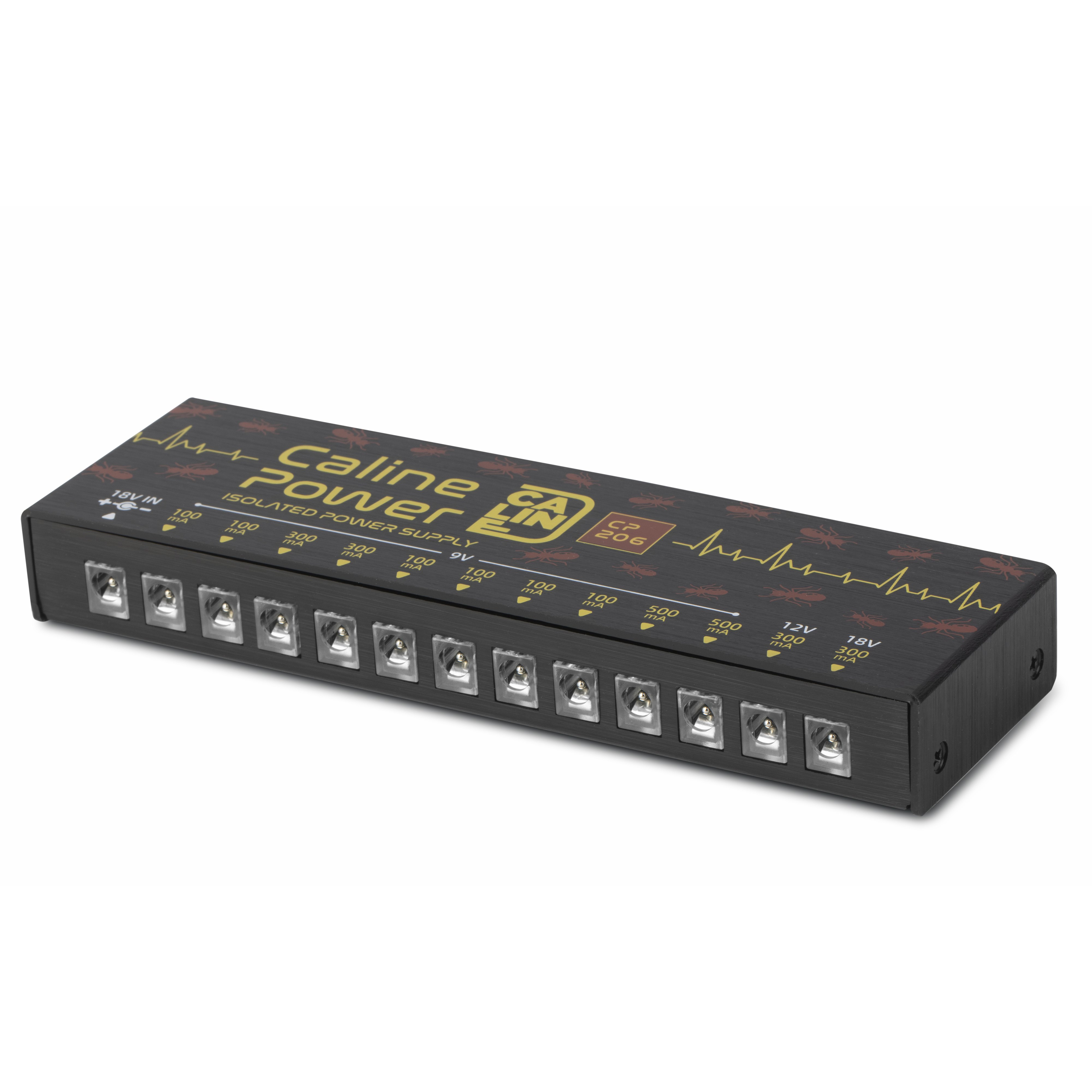

Caline CP-206 Fully Isolated pedalboard power supply

12 fully isolated Outputs:


6 outputs 9V DC @ 100mA

2 outputs 9V DC @ 300mA

2 output 9V DC @ 500mA

1 output 12V DC @ 300mA


1 output 18V DC @ 300mA


Input:18V 1.5A

Power: 18W


Item size:19.3*5.8*2.5cm

Item weight: 0.31kg

Package size: 21.3*11.3*6.1cm

Package weight: 0.71kg
